Electric Silicone Rubber Heating Pad

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Browse by Category

Contact us

Yancheng Xuanyuan Heating Equipment Technology Co.,Ltd
[China]

Address
Room 1302 Building Huabang Yancheng Jiangsu
Phone
86-0515-88182266
Contact name
Cady Liu

Quick Information

  • Place of Origin: China

Description

Our products can be customized according to our requirements,
If inquiry,welcome to contact me                      wahtsapp 008618705113268 or wechat 18705113268

Description for silicone rubber heater

The Silicone Heating Pad consists of high temperature resistance wire wound around a fiberglass core for added support and flexibility while still allowing for expansion and contraction during heat up and cool down. The element is laid out in a computer designed pattern to provide maximum heat transfer and temperature uniformity. After the element is laid out, it is vulcanized between two sheets of silicone rubber until they become one. The silicone rubber sheets also have a layer of fiberglass for added strength and tear resistance. The same vulcanization process is used to attach the power leads and cord sets to the heater windings.

Product Feature
1.Maximum temperature resistant of insulant: 230°C
2.Maximum Operating Temperatures: 200 °C
3.Power deviation: 8%
4.insulating resistance: ≥ 5 MΩ
5.Compressive strength: 1500V/5
6.Width: 20mm-1000mm;Length: 25mm-1000mm
7. Fast heat diffusion, Uniform heat transfer,heat objects on;high thermal efficiency, high strength, long service life,work safe uneasy for ageing.

Pictures Show

6.jpgSpecification

Shape Round,Rectangle,Irregular shape(customized shape)
Size Min 20x20mm    Max 3000x1200mm
Voltage 12v 24v  110v 120v 220v 230v 240v 380v etc
Watt 0.1-1.0w/cm2
Temperature control dial,digital temperature control
Temperature sensor thermistor,k type,J type,E type thermocouple
Backside With or without 3M adheisve backside

Application

1 Freezing and compression prevention for various instruments and devices.

2 Medical equipment such as blood analyzer, test tube heater.

3 Computer auxiliary equipment, such as laser printer.

4 Vulcanized surface of plastic film.

Certification

CERTIFICATE.jpgHow to order?
1.Product specification

   If round,diametre,voltage?

   If rectangle,width,length,voltage?

   If irregular,drawing will be better for reference.

2.If you dont have any specification for products,just let us know your requirements,

   We offer a special design for you.

3.Pls indicate your needed quantity for better quotation.

4.Drawing will be sent to you for last confirmation before production.

Company Information

Yancheng Xuanyuan Heating Equipment Technology Co.,Ltd is a professional engaged in the electric heater design, manufacture and sales of integrated entity enterprise, has over 20 years experience in electric heater of scientific research and production.

Enterprise has core technology advantage and introduce advanced technology and management concept, in accordance with the ISO9001 quality management requirements, strict control of raw materials quality, perfect detection means, with first-class technology, reliable quality and excellent service to win customers praise and praise. 26.jpgPackage and Delivery

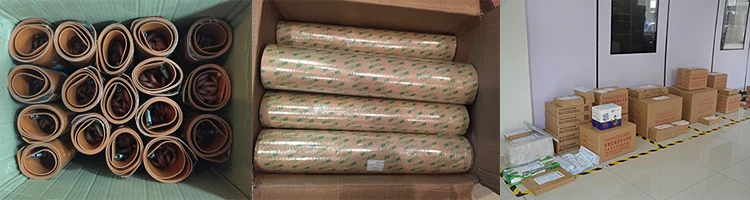

1.Package: Plastic bag wraped,carton box

2.Delivery time: For samples,3-5 days after payment

                          For big quantity,negotiated time

   Delivery terms: Express,by Sea,By Air
Contact Us.jpg


Packaging & Delivery

  • Packing :1pcs in carton box
  • Delivery Lead Time : 5-7 days for ready goods
  • Supply Ability : 10000 pcs per month
